    Toyota Automobiles Diesel Engine 2z Piston Ring 13011-78700-71

    Ask Lasest Price
    Brand Name : RIK
    Model Number : 2Z
    Price : usd+8.8+CYL
    Payment Terms : T/T
    Supply Ability : 100 SETS
    Delivery Time : 2-5days
    • Product Details
    • Company Profile

    Toyota Automobiles Diesel Engine 2z Piston Ring 13011-78700-71

    TOYOTA Automobiles Diesel-engine 2Z Piston ring 13011-78700-71


    Product Parameter


    Engine TypeccVehicle Model
    Chassis Type
    Cyl. NoPiston RingRemarks
    PositionSize (mm) d1×h1×a1 (D×B×T)MaterialSurface TreatmentSet TypeSet No.
    2Z3,469●Forklift4198 × 2.0 × 3.6GNSM2804913011-78700-71
    298 × 2.0 × 4.2Cr1
    098 × 4.0 × 2.5GN


    Product Description


    The hard chromium plating layer has excellent characteristics which combine the original properties of chromium metal with the advantages of erectro-deposits. The main features of hard chromium plating are as follows:

    1. Extermely high hardness of HmV (Micro Vickers)

    800 to 1100 (cf. gray cast iron 220 to 270)

    2. High melting point of approx. 1800℃ (cf. cast iron 1200℃ )

    3. Good thermal conductivity and corrosion resistance.

    4. Low friction factor and excellent wear resistance. Such features are very effective in preventing piston ring wear.

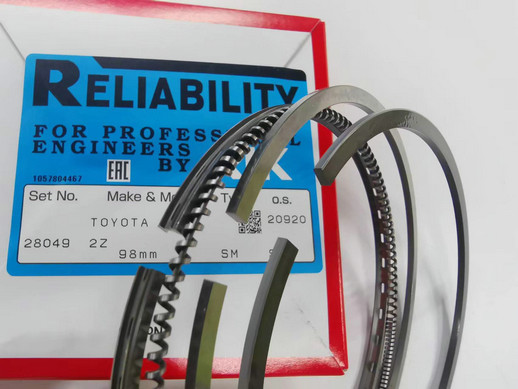

    The following are supplementary pictures for details:


    Toyota Automobiles Diesel Engine 2z Piston Ring 13011-78700-71
